Certificate 1. CE 2. RoHS 3. FCC 4. UN38.3 5. MSDS 6. 62133 7. 62368
Certificate
1. CE
2. RoHS
3. FCC
4. UN38.3
5. MSDS
6. 62133
7. 62368

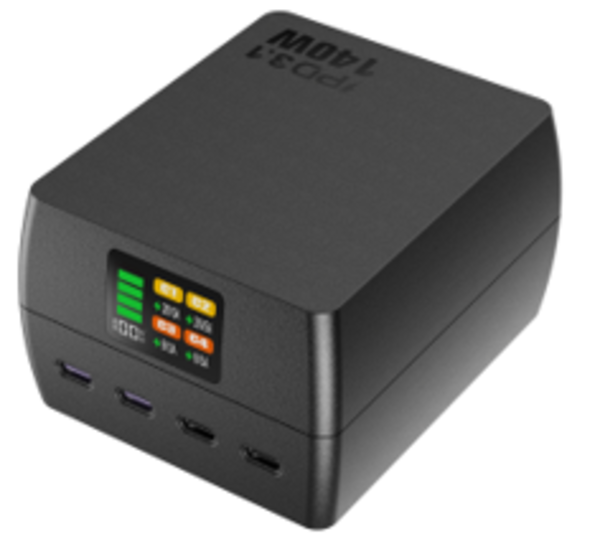

1. Plastic housing with original color
2. With TFT Display to show the remaining power.
3. Input 1: USB-C1 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A,28V/5A(140W max)
Input 2: USB-C2 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A,28V/5A(140W max)
4. Output 1:USB-C1 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A,28V/5A(140W max)
*PPS* 3.3-16.6V/6A (66W max)
Output 2: USB-C2 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A,28V/5A(140W max)
*PPS* 3.3-16.6V/6A (66W max)
Output 3: USB-C3 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/2A(30W max)
Output 4: USB-C4 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/2A(30W max)
5. Total Power:USB-C1/ C2/ C3/ C4 PD240W (max)
6. Support Agreement :PPS/PD3.1/3.0/QC4.0+/3.0/2.0/AFC/SCP/FCP/BC1.2/APPLE2.4
7. Four USB-C ports independently support fast charge,Simultaneously Charge 4
devices.
8. Simultaneously Charge:
(1) USB-C1 / C2 =140W max or USB-C3 / C4 =30W max
(2) USB-C1 / C2 / C3 / C4 Can be divided the power into different level smartly.
*1.(28V)USB-C1 / C2 140W +(20V)USB-C1 / C2 100W =Total: 240W max
*2.(20V)USB-C1 / C2 100W +(20V)USB-C1 / C2 100W =Total: 200W max
*3.(20-28V)USB-C1/ C2 100-140W +(15V)USB-C3 / C4 30W =Total: 170W max
*4.(20V)USB-C1 65W + C2 65W +(15V+ USB-C3 30W+ C4 30W =Total: 160W max
9. Supporting input(USB-C1/ C2) and output(USB-C1/ C2/ C3/ C4) in fast mode at the same time.
