parameter information
Specifications
  • product name

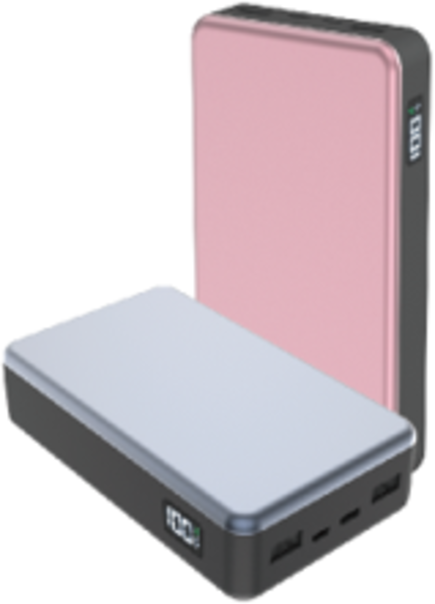

    EP130 PD100W PPS65W Power Bank,Three Channel Output
  • product color
    Black, Grey, Blue
  • product country
    China (中国)
  • product brand
    Evertec
  • product spec
    130X77x26mm Weight: 365g ,Li-polymer Battery, Capacity 20000mAh

Other information

Certificate 1. CE 2. RoHS 3. FCC 4. UN38.3 5. MSDS 6. 62133 7. 62368

Inquiry

Certificate

1. CE
2. RoHS
3. FCC
4. UN38.3
5. MSDS
6. 62133
7. 62368



1. Plastic housing with original color & Aluminumm Coating, Matt UV looking
2. With 188 LED Display to show the remaining power.
3. Input 1: USB-C1 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A(100W max)
    Input 2: USB-C2 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A(100W max)
4. Output 1:USB-C1 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A(100W max)
                *PPS* 3.3-16.6V/6A (66W max)
    Output 2: USB-C2 PDO/QC 5V/3A, 9V/3A, 12V/3A,15V/A, 20V/5A(100W max)
                *PPS* 3.3-16.6V/6A (66W max)
    Output 3: USB-A  QC 5V/3A, 9V/2.5A, 12V/1.5A (22.5W max)
5. Total Power:USB-C1/C2  PD100W (max)
6. Support Agreement :PPS/PD3.0/QC4.0+/3.0/2.0/AFC/SCP/FCP/BC1.2/APPLE2.4
7. Dual USB-C ports independently support fast charge,Simultaneously Charge 3 devices.
8. Simultaneously Charge:
(1) USB-C1 / C2 =100W max
(2) USB-C1 / C2 Can be divided the power into two level smartly.
*1.(20V)USB-C1 / C2 65W +(9V)USB-C1 / C2 30W =Total:95W max
*2.(20V)USB-C1 / C2 45W +(20V)USB-C1 / C2 45W =Total:90W max
*3.(20V)USB-C1 65W +(9V)USB-A 22.5W =Total:87.5W max
*4. USB-C1 65W+(USB-A+USB-C2 5V3A=15W) =Total: 80W max
*5. USB-C2 + USB-A =(Total Power 5V6A max)
9. Supporting input and output in fast mode at the same time.
